| Rated Load | 额定载荷 | kg | 0.2,0.5,1,2,5,10,20,50 |
| Rated Output | 额定输出 | MV/V | 1.5 |
| Zero balance | 零点平衡 | %R.O | ±1 |
| Comprehensive Error | 综合误差 | %R.O | ±0.3 |
| Nolinear | 非线性 | %R.O | ±0.3 |
| Lag | 滞后 | %R.O | ±0.1 |
| repeatability | 重复性 | %R.O | ±0.1 |
| Temp. compensated | 正常工作温度范围 | ℃ | -10-+40 |
| Safe temp. range | 允许工作温度范围 | ℃ | -20-+70 |
| Temp.effect/10℃ on output | 温度对灵敏度影响 | %R.O./10℃ | ±0.03 |
| Temp.effect/10℃ on zero | 温度对零点影响 | %R.O./10℃ | ±0.03 |
| Rated excitation | 激励电压 | VDC | 5-12 |
| Maximum excitation | 最大激励 | VDC | 15 |
| Input impedance | 输入阻抗 | Ω | 406±10 |
| Output impedance | 输出阻抗 | Ω | 350±3 |
| Insulation resistance | 绝缘阻抗 | MΩ | >3000 |
| Safe overload | 安全载荷 | %R.C. | 150 |
| Ultimate overload | 极限载荷 | %R.C. | 300 |
| Material | 材料 | aluminum | |
| Degree of protection | 保护等级 | IP65 | |
| Cable length | 线长 | m | 3 |

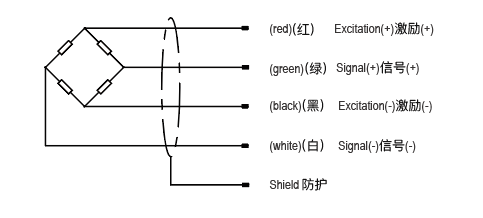

| Cable color code | 接线 |
Red(+E) Black(-E) Green(+S) White(-S) |
